Case Erectors

Manufacturers: Loveshaw and S & R Industries – models in order of appearance

Semi-automatic

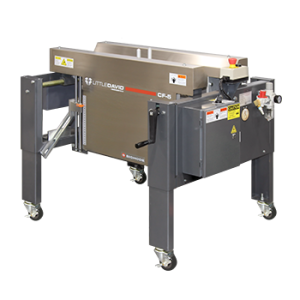

CF-5
  • Ergonomic design
  • Accomodates a wide range of boxes
  • Requires no lubrication
  • Slide and lock legs adjust to meet most conveyor heights
  • Maximum outside dimensions 26 1/2″ long x 20″ wide x INF high
  • Minimum outside dimensions 8″ long x 6″ wide x 3″ high
  • Three diffuse photo-eyes confirm case in position
  • Plug in operation
  • Minimal operator training required
  • Safe operation – three photo-eyes must be blocked within time base range as monitored by a PLC prior to initiation of the flap folding sequence – versus pneumatic logic used in other machines
  • Case clamping wheels retract fully to accept the case – reduces the need for the operator to force the case into the aperture
  • Scales for easy adjustment
  • Illuminated run mode indicator
  • Electronically controlled sequence
  • Built in case holding device to hold case in place for easy loading

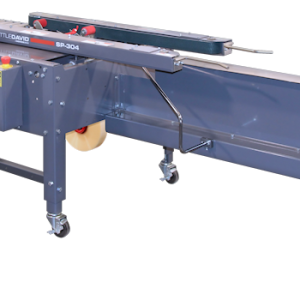

SP-304BO
  • Capable of facilitating the forming of up to 24 cases per minute.
  • Erects and bottom seals cases for use at a later time
  • Comes with extended side belts which are manually adjusted for various case sizes
  • Maximum outside dimensions 24″ long x 20″ wide x INF” high
  • Minimum outside dimensions 6″ long x 4-1/2″ wide x 4-1/2″ high
  • Folds both bottom major flaps (2 total)
  • New heavy duty side threading Caselocker cartridge – instantly removable and interchangeable
  • Bison gearmotors
Fully automatic

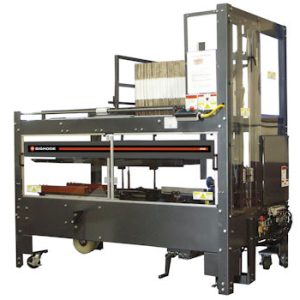

CF-25T
  • Industrial grade, high performance case erectors
  • Designed to form and bottom-seal corrugated boxes at speeds up to 10 cases per minute
  • Small footprint
  • Upgraded vacuum system and (3) vacuum cups
  • Chain and lug drive ensuring a square box is formed
  • Quick/Easy changeover
  • Load-on-the fly / easy load hopper
  • Maximum outside dimensions 16″ long x 14″ wide x 12″ high
  • Minimum outside dimensions 6″ long x 6″ wide x 4″ high
  • Allen Bradley Micrologix 1000 PLC
  • Removable, 2″ heavy duty Caselocker tape cartridge
  • Calibrated scales for quick, easy width and height adjustments

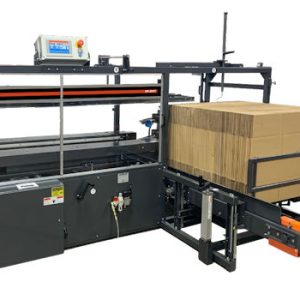

CF-50T
  • Automatically forms, folds, and bottom seals RSC corrugated cases
  • Easily folds a variety of corrugated cases – from double wall to recycled material, and can form up to 20 cases per minute
  • Minimal operator training
  • Improved tool-less changeover
  • Maximum outside dimensions 24″ long x 16″ wide x 20″ high
  • Minimum outside dimensions 7″ long x 6″ wide x 4″ high
  • Walk-in chain driven power hopper with hydraulic height adjustment mounted horizontally to ensure that there is no weight on the front of the cases
  • Quick/Easy changeover
  • Load-on-the fly / easy load hopper
  • Calibrated scales for quick, easy width and height adjustments
  • Power hopper is fork truck accessible up to the mid-point
  • Bottom squeezer to compress major flaps together for increased case integrity and squareness
  • Pneumatic flap folders front and rear to eliminate chronic jamming
  • Allen Bradley Micrologix 1000 PLC
  • Control panel with remote coil cord
  • SMC pneumatics with the latest valve and actuator technology
  • Photocell case on demand system
CF-50TXL
  • Same model as the CF-50T, but with a larger case range
  • Maximum outside dimensions 24″ long x 20″ wide x 20″ high
