Conveyors

Slider bed

• Width (overall): ranges from 17″ to 42″
• Width (belt): standard 5″ less than overall width
• Length (overall): ranges from 5′ to 102′
• Height: supplied with adjustable “H” type supports on nominal 10 ft centres
• Bed: 3-1/2″ X 12 Ga. galvanized formed steel channel frame bolted together with butt couplings – bed sections are bolted together with splice plates
• Belt: various – ranging from black PVC to white RMP with clipper lacing or cold spliced endless seam
• Drive: end drive, underneath (typically)
• Drive pulley: ranges from 4″ to 8″ diameter with 1″ diameter shaft at bearings – fully lagged and machine crowned for improved tracking
• Tail pulley: 4″ diameter with 1″ diameter shaft at bearings – machine crowned
• Take-up: typically 4″ of belt take-up is provided by screw take-up mounted at tail pulley
• Bearings: sealed, pre-lubricated, self-aligning cast iron ball bearings on drive and tail pulleys
• Speed reduction: sealed worm gear “c” face speed reducer – no. 50 roller chain to drive pulley
• Motor: powered with 1/3 Hp to 2 Hp, 120 to 575V, 1 and 3 phase, totally enclosed, fan cooled, “c” face
• Conveying speed: constant and variable speeds available from 10 to 200 fpm
• Guard rails: various ranging from solid side formed angles to adjustable formed channel
• Load capacity: 100 lbs. per lineal foot, 1500 lbs. total live load per driven section
• Finish: galvanized
• Electrical controls: available as an option

• Width (overall): Belt width + 5″
• Width (belt): 12″ to 36″ in full 6″ increments
• Length (overall): ranges from 7′ to 102′
• Belt: black PVC-120 with clipper lacing
• Height: supplied with 3″ structural channel legs with 4″ adjustment – available up to 89″ top of belt – one support at every bed joint and at ends of conveyor
• Bed: Roller bed with 1.9 in. dia. x 16 ga. rollers with 7/16 in. hex shafts spaced every 6 inches
• Frame: 5-1/2″ deep x 10 ga. painted steel channel frames. – standard 5 ft. and 10 ft. long welded sections, with welded-in end couplers
• Tail Pulley: 4″ Dia. with 1-3/16″ dia. shaft, 6″ dia. with 1-7/16″ dia. shaft, crowned
• Snub rollers: 2-1/2″ dia. with grease packed ball bearings (adjustable)
• Return rollers: 1.9″ dia. with grease packed ball bearings
• Take-up: provides belt take-up at tail pulleys to allow for future belt stretch
• Bearings: sealed, pre-lubricated, self aligning ball bearings on drive and tail pulleys
• Speed reduction: sealed worm gear “c” face speed reducer – no. 50 roller chain to drive pulley
• Motor: powered with 1/2 Hp to 2 Hp, 120 to 575V, 1 and 3 phase, totally enclosed, fan cooled, “c” face
• Conveying speed: constant and variable speeds available from 10 to 200 fpm
• Guard rails: various ranging from solid side formed angles to adjustable formed channel
• Load capacity: 240 lbs. per lineal foot, 11000 lbs. total live load per driven section
• Finish: painted industrial enamel
• Electrical controls: available as an option

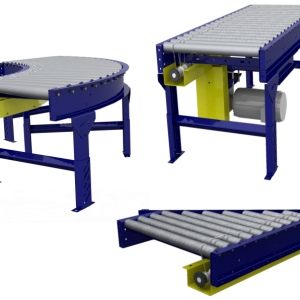

• Width (Between Rail): ranges from 13″ to 39″ in 1″ increments
• Width (overall): 3″ greater than BFR
• Length: 120 ft per driven section with drive at the centre
• Height: supplied with adjustable “H” type supports on nominal 10 ft centres
• Frame: 5.5″ X 12 gauge galvanized, formed steel channel frame bolted together with butt couplings – rods and turnbuckles are used on every other bed section on lengths exceeding 30 ft. – this insures proper alignment of bed rollers and correct product tracking
• Rollers: 1.9″ X 16 gauge galvanized tube on 3″ centres (typical)
• Axles: 7/16″ hex shaft, spring retained
• Drive: centre-mounted, underneath – motor will extend beyond frame on widths less than 24″ OAW
• Drive shaft: 1″ diameter steel shaft extends full length of conveyor – Delrin chain coupling at all bed joints
• Drive spools: 2″ diameter Delrin spool, fixed in position with “snap-on” lock collars
• Drive guard: easily detachable from underside of drive shaft, mounted the entire length of conveyor
• Drive o-ring: 3/16″ diameter polyurethane o-ring from drive spool to tread rollers – spares are pre-attached to the inside of the frame
• Bearings: tread rollers have pre-lubricated ball bearings – drive shaft has sealed, pre- lubricated, self- aligning cast iron ball bearings with eccentric lock collar
• Speed reduction: sealed worm gear “c” face speed reducer – no. 50 roller chain to drive
• Motor: powered with 1/2 Hp to 2 Hp, 120 to 575V, 1 and 3 phase, totally enclosed, fan cooled, “c” face
• Conveying speed: constant speeds available from 45 to 120 fpm – high speed enhancements available
• Guard rails: various ranging from solid side formed angles to adjustable formed channel
• Load capacity: 15 lbs. per driven roller, up to 2500 lbs. total live load per driven section, product not to exceed 75 lbs.
• Finish: galvanized
• Electrical controls: available as an option

• Width (between rail): ranges from 13″ to 39″ in 1″ increments
• Width (overall): 3″ greater than BFR
• Length: 120 ft per driven section with drive at the centre
• Height: supplied with adjustable “H” type supports on nominal 10 ft centres
  Frame: 5.5″ X 12 gauge galvanized, formed steel channel frame bolted together with butt couplings – rods and turnbuckles are used on every other bed section on lengths exceeding 30 ft. – this insures proper alignment of bed rollers and correct product tracking
• Rollers: 1.9″ X 16 gauge galvanized tube on 3″ centres (typical)
• Accumulation zone: 24″ long is standard – 18″, 30″ and 36″ zone lengths available – each zone is controlled by air logic
• Sensing roller: 7/8″ dia. x 18 ga. wall aluminum roller – one roller in each accumulation zone – minimum product weight required to depress trigger roller is 5 lbs.
• Zero pressure options: 1-3/8″ x 16 ga. dia. galvanized rollers on 1-1/2″ centers, slug release, electric sensor instead of sensor rollers
• Bearings: tread rollers have pre-lubricated ball bearings – drive shaft has sealed, pre- lubricated, self- aligning cast iron ball bearings with eccentric lock collar
• Speed reduction: sealed worm gear “c” face speed reducer – no. 50 roller chain to drive
• Motor: powered with 1/2 Hp to 2 Hp, 120 to 575V, 1 and 3 phase, totally enclosed, fan cooled, “c” face
• Conveying speed: constant speeds available from 45 to 120 fpm – high speed enhancements available
• Air requirements: minumum 30 PSI on main air supply line
• Filter/regulator: supplied for main air supply line – 3/8 in. NPT port
• Guard rails: various ranging from solid side formed angles to adjustable formed channel
• Drive: mounted underneath with a minimum 23-1/4″ top of roller – if between frame dimension is less than 20″, motor will extend beyond frame of conveyor – side mounted drives are available with a minimum 12-3/4″ top of roller
• Load capacity: 1.9″ dia. maximum load – 15 lbs. per driven roller – maximum driven length with single drive @ center – 120 ft. – 1-3/8″ dia. maximum load – 10 lbs. per driven roller – maximum driven length with single drive @ center – 70 feet for 1-3/8″ rollers
• Finish: galvanized
• Electrical controls: 115V-1 Ph-60 Hz. solenoid valve in discharge zone to override air logic – limit switch is also supplied to revert control back to air logic once the product is clear

• Belt: 6″ wide PVC-120 with clipper lacing. 12″ wide for 32″ between frame and larger
• Bed: roller bed with 1.9″ dia. x 16 ga. galvanized “pop-out” tread rollers spaced on 3 in. centers and 1.9″ dia. x 16 ga. galvanized pressure rollers spaced on 6″ centers – mounted in 6-1/2″ deep x 1-1/2″ x 12 ga. galvanized steel channel frames – standard 5 ft. and 10 ft. long bolt-together sections with bolt-on end couplers
• Height: supplied with adjustable “H” type supports on nominal 10 ft centres
• Drive pulley: 4″ dia. with 1-3/16″ dia. shaft or 8″ dia. with 1-7/16″ dia. shaft, crowned and fully lagged
• Tail pulley: 4″ dia. with 1-3/16″ dia. shaft, crowned
• Snub roller: 2-1/2″ dia. galvanized with grease packed ball bearings (adjustable)
• Return rollers: 1.9″ dia. galvanized with grease packed ball bearings
• Take-up: provides belt take-up at tail pulley to allow for future belt stretch
• Bearings: sealed, pre-lubricated, self-aligning ball bearings on drive and tail pulleys
• Speed reduction: sealed worm gear “c” face speed reducer – no. 50 roller chain to drive
• Motor: 1/2 Hp to 2 Hp, 120 to 575V, 1 and 3 phase, totally enclosed, fan cooled, “c” face
• Conveying speed: constant speeds available from 25 to 180 fpm
• Guard rails: various ranging from solid side formed angles to adjustable formed channel
• Load capacity: maximum load per linear foot with legs on 10 ft. centers – 310 lbs
• Finish: galvanized
• Electrical controls: available as an option

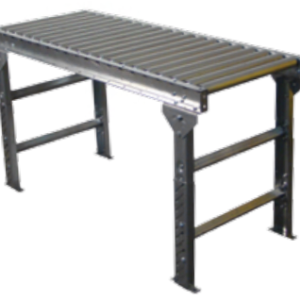

• Frame: 2-1/2″ deep by 1″ flange x 12 ga. galvanized steel or 1/8″ aluminum channel with bolt-in cross members, spaced every 2 ft – an economy lite line is available with 14 ga. channel frames – 4″ deep channel frames for rollers set low
• Widths (overall): 12″, 15″, 18″, 21″, 24″, and 30″
• Lengths: 5 ft. and 10ft straight sections – special lengths available
• End couplers: gravity hooks on one end – rod on opposite end – all couplings are bolted to frame – bolt-in end couplers also available
• Rollers: 1- 3/8″ dia. x 18 ga. galvanized or heat-treated aluminum tubing
• Bearings: oiled ball bearings both ends
• Axles: 1/4″ dia. spring retained axle spaced on 1-1/2″, 3″, 4″, 4-1/2″, 6″, 8″, 9″ or 12″ centers

1.9″ dia. gravity roller conveyor is ideal for carrying heavier packages or where impact loading or unloading occurs.

• Frame: 3-1/2″ deep by 1-1/2″ flange x 10 ga. galvanized steel or 1/8″ aluminum channel with bolt-in cross members, spaced every 2 ft – an economy lite line is available with 12 ga. channel frames – 4-1/2″ deep channel frames for rollers set low
• Width (between rail): ranges from 13″ to 39″ in 1″ increments
• Width (overall): 3″ greater than BFR
• Lengths: 5 ft. and 10ft straight sections – special lengths available
• End couplers: bolt-in end couplers also available
• Rollers: 1.9″ dia. x 16 ga. galvanized steel tubing
• Bearings: grease packed ball bearings both ends
• Axles: 7/16″ in. dia. spring retained axle spaced on 2″, 3″, 4-1/2″ or 6″ centers

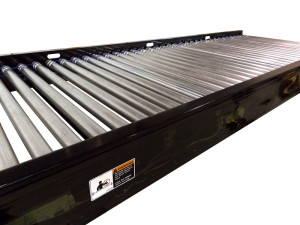

• Width (overall): 6-1/2″ greater than conveying surface width
• Width (conveying surface): ranging from 3″ to 95″ in any increment 52″
• Width (between frame rail): 3-1/4″ greater than conveying surface width
• Length (overall): ranging from 1′-0″ through 12′-0″ bed section – overall length determined by application load
• Height: supplied with welded “H” type supports on maximum 5 ft centres – constructed from 4″ X 5.4 lb structural channel
• Frame: 6″ X 8.2 lb. structural channel frame, welded and painted and bolted together with butt couplings
• Rollers: 2-1/2″ X 11 gauge wall unplated rollers on centres ranging from 2-13/16″ to 5-1/2″ and up in +1/2″ increments
• Axle: 11/16″ pin retained hex axle
• Drive: side high mounted, located near centre of conveyor – sealed worm gear speed reducer with “c” face for motor mounting
• Motor: 3/4 Hp to 2 Hp, 120 to 575V, 1 and 3 phase, totally enclosed, fan cooled, “c” face
• Bearings: sealed, pre-lubricated ball bearings, #102041
• Chain: no. 60 roller chain between rollers – no. 60 main drive – dependent upon roller diameter and centres
• Conveying speed: factory preset ranges from 5 to 150 fpm
• Guardrail: available to be mounted on side opposite the chain guard – formed 10 ga.
• Load capacity: 1000 lbs per linear ft. – up to 20,000 lbs uniformly distributed load – 580 lbs per roller
• Finish: all steel surfaces are coated with an industrial enamel

• Width (overall): 1.0″ greater than specified belt width
• Width (belt): 6″ to 36″
• Length (overall): 3′-0″ to 30′-0″
• Height: supplied with welded tubular “H” supports with polyamide jackscrew feet that provide adjustability of ± 2″
• Bed: constructed from aluminum extrusion – 80 mm x 40 mm with stainless steel top plate and two return rollers. Can also be constructed as 40 mm x 40 mm.
• Belt: various – ranging from white PVC to urethane with clipper lacing or cold spliced endless seam
• Drive: end drive, side
• Drive pulley: 3-1/2″ diameter x 0.120″ wall fixed pulleys with 1″ diameter shaft hubs – crowned
• Tail pulley: 3-1/2″ diameter x 0.120″ wall fixed pulleys with 1″ diameter shaft hubs – crowned
• Idler rollers: on nominal 36″ centres – 2″ diameter x 0.120″ wall PVC rollers with 7/16″ hex shaft axles
• Take-up: 2″of belt take-up is provided by screw take-up mounted on one of the idler rollers
• Bearings: all bearings are 1-1/8″ diameter caged roller bearings with seals – all bearing surfaces are hardened and precision ground for longevity
• Speed reduction: Leeson sealed worm gear “c” face speed hollow output shaft reducer with torque arm
• Motor: Leeson 1/4 Hp to 1 Hp, 120 to 575V, 1 and 3 phase, totally enclosed, fan cooled, “c” face
• Conveying speed: constant and variable speeds available from 10 to 300 fpm
• Guard rails: various ranging from solid side plate to adjustable Valu-Guide systems
• Load capacity: 25 lbs. per lineal inch, 175 lbs. total live load per driven section, assuming that conveyor is not inclined or accumulating
• Electrical controls: available as an option
• Options: include casters, transition plates and end stops

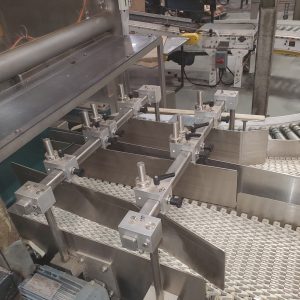

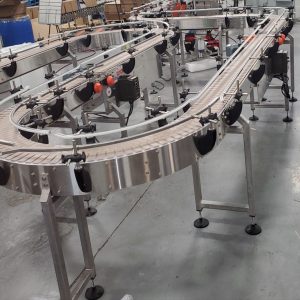

• Belt:  KVP / Habasit or Intralox in open (vented) and solid top, polyethylene or acetal with polypropylene or nylon rods
• Widths: available 2″ through 96″
• Frame: 11 or 7 gauge side plates with three sets of welded formed cross members that serve to fasten the rail supports – centre distances not to exceed 36″ – bolt-on (6 bolt) splice plates
• Height: supplied with welded tubular “H” supports with polyamide jackscrew feet that provide adjustability of ± 2″
• Belt support: parallel UHMW profiles will be fastened to cross-members with stainless steel two piece clamp nuts – centre distance between profiles not to exceed 6″
• Belt return: parallel UHMW profiles will be fastened to cross-members with stainless steel two piece clamp nuts – centre distance between profiles not to exceed 6″
• Drive pulley: consists of UHMW-PE or acetal 7, 9 or 15 tooth sprockets on centres not to exceed 6″ with keyed 1″ or 1-3/16″ dia. shaft
• Tail pulley: consists of UHMW-PE or acetal 7, 9 or 15 tooth sprockets on centres not to exceed 6″ with keyed 1″ or 1-3/16″ dia. shaft (low speed application do not require keyed shafting)
• Take-up: no take-up required – low tension drive system
• Bearings: reinforced polyamide, two bolt flange bearings with adjustable, pre-lubricated ball bearings and ball type grease nipple – mounting holes are reinforced with stainless steel spacer inserts – supplied with clip-on safety seal caps with o-ring seal
• Speed reduction: Leeson or Nordgear sealed worm gear “c” face speed hollow output shaft reducer with torque arm
• Motor: Leeson or Nordgear 1/4 Hp to 1 Hp, 120 to 575V, 1 and 3 phase, totally enclosed, fan cooled, “c” face
• Conveying speed: variable speeds available from 5 to 300 fpm – we insist on soft-start integration
• Guard rails: various ranging from solid side plate to adjustable Valu-Guide systems
• Load capacity: 25 lbs. per lineal inch, 175 lbs. total live load per driven section, dependent upon inclination, accumulation and belt width
• Electrical controls: available as an option
• Options: include casters, transition plates, scraper plates and end stops
