Labellers

Manufacturers: Nita and Loveshaw – not all models are shown

NITA ADVANTAGES

  • Graduated scales (in mm) at ALL adjustment points and each one is identified with a discrete letter, ie. A, B, C, etc.
  • Photo-eyes NEVER get moved – time delays are memorized in each label recipe
  • The result: the line operator retrieves the label recipe, sets the machine up according to the recipe, loads the labels and calibrates the gap sensing photo-eye. No specialized technical staff are required to perform a changeover.
  • Conveyor and label dispensing are 100% speed synchronized from a start / stop to all operating speeds from 5 m/min to 30 m/min – label position is precisely maintained throughout all of these dynamic changes.
  • Operator can adjust labeller speed on the fly to accommodate changing line conditions.
  • Can be dynamically slowed down to a crawl for diagnostic purposes.
  • No proprietary parts. Servos, sensors and HMI can be sourced from your local distributors.

Primary label application

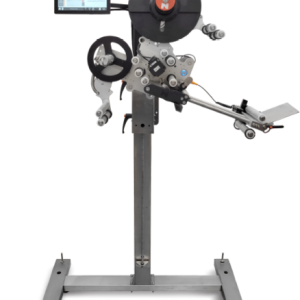

AE612 Mk.II
  • High accuracy top and side “wipe-on” applications on cases and all sorts of primary packaged products
  • Easy and accurate label positioning with built-in encoder connection
  • Heavy duty, welded 4″ tubular floor stand is available as an option
  • Also available in tamp blow version under part AE612MKII-TB
  • Variable up to 1570 inches/min
  • Maintenance free Emerson servo motor and controller/amplifier
  • 3.5″ Beijer HMI  touch screen – with integrated controller
  • Labels up to 6 inches wide (optional 9 inches)
  • Tool-less and all adjustment axes are equipped with scales for quick reference
  • Sick retro-reflective photo-electric product sensing and optical label gap detection.
Lance
  • For top label application onto containers – up to 16″ wide x 9″ high
  • Stainless steel 5 foot long conveyor – option for 8 foot long
  • Conveyor frequency drive is 100% synchronized with label application
  • 5.7″ Beijer HMI touch screen – with integrated controller
  • Variable dispensing speed – up to 1570 inches/min
  • Dispensing precision to ±1/32 inch
  • Labels up to 6 inches wide (optional 9 inches)
  • Maintenance free Emerson servo motor and controller/amplifier
  • Precision sealed bearings – eliminates all lubrication and risk of contaminants
  • Unwind belt braking system allows for a smooth feed with no backlash and consistent web tension
  • Electronically, touch screen controlled gap and product sensors – no manual positioning required
  • One touch tensioning of media and threading with a simple ball detented nip roller system
  • Extremely quick change-overs (tool free), all adjustment axes are equipped with graduated scales and colour coded controls
  • Sick retro-reflective photo-electric product sensing and optical label gap detection
  • Optional Sick clear label sensor for opaque labels is ‘ teach ‘ configurable with no potentiometers with which to to fiddle



Shellshock

  • Provides a single top label application as well as tamper-evident seal in a c-shaped application
  • Can be used for clamshells, trays, tubs, cartons and so much more -16″ wide X 9 ” high
  • Stainless steel 5 foot long split belt conveyor – option for 8 foot long
  • Conveyor frequency drive is 100% synchronized with label application
  • 5.7″ Beijer HMI touch screen – with integrated controller
  • Variable dispensing speed – up to 1570 inches/min
  • Dispensing precision to ±1/32 inch
  • Labels up to 6 inches wide (optional 9 inches)
  • Maintenance free Emerson servo motor and controller/amplifier
  • Precision sealed bearings – eliminates all lubrication and risk of contaminants
  • Unwind belt braking system allows for a smooth feed with no backlash and consistent web tension
  • Electronically, touch screen controlled gap and product sensors – no manual positioning required
  • One touch tensioning of media and threading with a simple ball detented nip roller system
  • Extremely quick change-overs (tool free), all adjustment axes are equipped with graduated scales and colour coded controls
  • Sick retro-reflective photo-electric product sensing and optical label gap detection
  • Optional Sick clear label sensor for opaque labels is ‘ teach ‘ configurable with no potentiometers with which to to fiddle

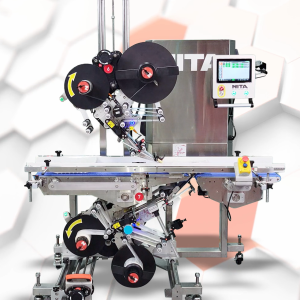

Joust



  • Applies a single top label  and / or a single bottom label
  • With optional SSK (Shellshock),  tamper-evident seal in a c-shaped application is available
  • Activate each labeler individually or simultaneously – configurable in each recipe
  • Can be used for clamshells, trays, tubs, cartons and so much more -16″ wide X 9 ” high
  • Stainless steel 5 foot long split belt conveyor – option for 8 foot long
  • Conveyor frequency drive is 100% synchronized with label application
  • 5.7″ Beijer HMI touch screen – with integrated controller
  • Variable dispensing speed – up to 1570 inches/min
  • Dispensing precision to ±1/32 inch
  • Labels up to 6 inches wide (optional 9 inches)
  • Maintenance free Emerson servo motor and controller/amplifier
  • Precision sealed bearings – eliminates all lubrication and risk of contaminants
  • Unwind belt braking system allows for a smooth feed with no backlash and consistent web tension
  • Electronically, touch screen controlled gap and product sensors – no manual positioning required
  • One touch tensioning of media and threading with a simple ball detented nip roller system
  • Extremely quick change-overs (tool free), all adjustment axes are equipped with graduated scales and colour coded controls
  • Sick retro-reflective photo-electric product sensing and optical label gap detection
  • Optional Sick clear label sensor for opaque labels is ‘ teach ‘ configurable with no potentiometers with which to to fiddle
Synergy

  • Applies a single side label and / or a second side label
  • Dedicated to front, front/back, as well as a wraparound labeling applications
  • Top lid label can be added
  • Round, oval, square, rectangular shaped containers (bottles, jars, pails, etc.)
  • 10 foot stainless steel conveyor bed, also optionally available in 8 and 12 foot configurations
  • Activate each labeler individually or simultaneously – configurable in each recipe
  • Conveyor frequency drive is 100% synchronized with label application
  • 5.7″ Beijer HMI touch screen – with integrated controller
  • Variable dispensing speed – up to 1570 inches/min
  • Dispensing precision to ±1/32 inch
  • Labels up to 6 inches wide (optional 9 inches)
  • Optional top hold down belt
  • Maintenance free Emerson servo motor and controller/amplifier
  • Precision sealed bearings – eliminates all lubrication and risk of contaminants
  • Unwind belt braking system allows for a smooth feed with no backlash and consistent web tension
  • Electronically, touch screen controlled gap and product sensors – no manual positioning required
  • One touch tensioning of media and threading with a simple ball detented nip roller system
  • Extremely quick change-overs (tool free), all adjustment axes are equipped with graduated scales and colour coded controls
  • Sick retro-reflective photo-electric product sensing and optical label gap detection
  • Optional Sick clear label sensor for opaque labels is ‘ teach ‘ configurable with no potentiometers with which to to fiddle
Secondary label application

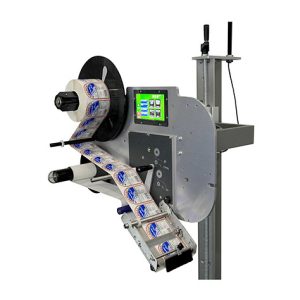

LX-500P

  • Compact and versatile
  • Can be oriented for top, side or bottom labeling
  • Built around a brushless DC Servo motor for accurate and dependable label dispensing
  • For use in applications that require maximum uptime and high repeatability
  • Wipe-on label applicator
  • Allen Bradley PLC controls
  • Drive roller-free patent-pending feed system
  • Accurate and reliable brushless servo motor
  • Instantaneous setting changes
  • Durable stainless steel peel plate
  • Easy-to-Read LED text display
  • Built-In diagnostics
LX-600T


  • Simple Operator Controls: Rugged Industrial Allen Bradley PLC with HMI touchscreen for ease of operator adjustments and labeler configuration; fast and intuitive setup, minimal training required
  • Random Stroke Applicator (LX-600T) applies labels to random size cases within its reach, effective stroke length of 6 1/2 inches
  • Quality components – Allen Bradley PLC and SMC Pneumatics: improve uptime, readily available and proven throughout industry, familiar to maintenance staff
  • Tool-less mounting stand turns labeler for standalone or ease conveyor integration
  • Customizable Applicator Pads
LX-800T
  • Simple, Easy-to-Use Control Interface
  • Isolated Rewind Shut Off – Allows operator to disengage rewind for label threading without powering down the entire system
  • Cast Alumimum Frame- For a strong design with fewer individual parts
  • Increased Width- Frame can run max. and min. width of all OEM printers
  • Custom Applicator Pads ( 4” x 6” Grid and Chamber, Standard)
  • Smart Tamp with Air Assist
  • Stainless Steel Blow Tube
  • Mounting Stand can adjust machine to fit any angle or position
LX-800RT
  • Simplified Control Panel with User
  • Friendly Touch Screen
  • Easy-Read Vacuum and Pressure Gauges
  • Isolated Rewind Shut-Off: Allows users to remove used backing material without powering down the unit
  • Simplifi ed Set-Up: From pallet to production in less than 10 minutes
  • Robust Industrial Design
  • UL Listed Controls
LX-800DT
  • Simplified Control Panel with User Friendly Touch Screen
  • Easy-Read Vacuum and Pressure Gauges
  • Isolated Rewind Shut-Off: Allows users to thread labels without powering down the unit
  • Robust Industrial Design
  • Simplified Set-Up: From pallet to production in less than 10 minutes
  • UL Listed Controls
