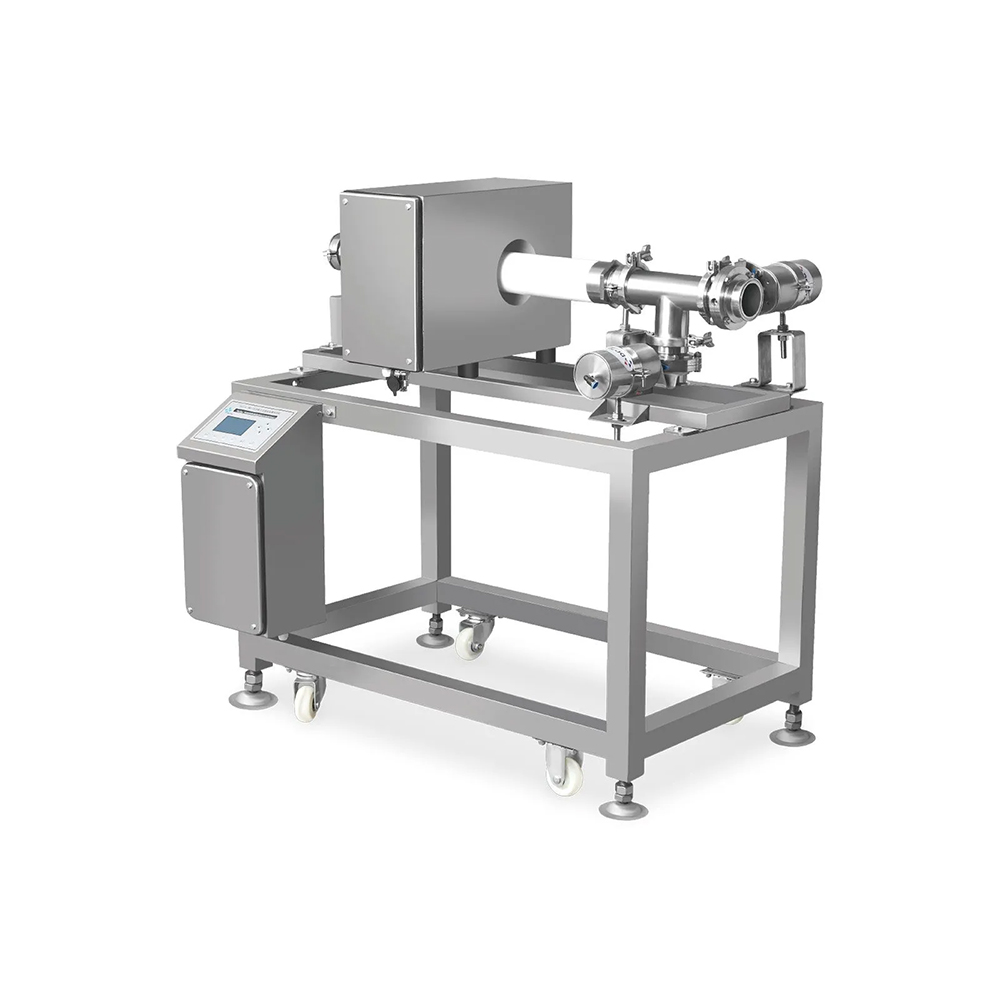

Flow-Through Metal Detector

Main Uses

  • For the accurate inspection of pumped fluid and semi-fluid products, including sauces, liquids, and other food products.

Quick info

Category:

Description

Standard Features:

  • Proprietary, powerful automatic product identification technology suppresses even the strongest product effect, enhancing both detection sensitivity and accuracy.
  • Easily integrated into most existing sealed pipe product conveyance systems.
  • Optional compact design for applications with limited space.
  • Food contact rated Teflon inner pipe liner withstands high temperature and pressure conditions.
  • Fast, accurate rejection valve for very low product waste.
  • Excellent option for both low and high viscosity products, some pure liquids to ground meat.
  • Will quick couple with 3 different pipe diameters: 50, 63, and 80mm.
  • Heavy duty, sanitary construction suitable for wash-down food processing applications.
  • Multilingual user interface, including English, Spanish, and many other language options.
  • Portable, on casters so it can be easily moved.

Specifications:

  • Main construction: SS304; matte, smudge resistant
  • Inspection diameter: 53mm; 60mm; 80mm
  • Control panel: Intuitive LCD HMI touchscreen
  • Detection sensitivity without product:
    • Fe ≥ 0.7mm
    • Non-Fe ≥ 1.0mm
    • SS ≥ 1.0mm
  • Product: Liquid / semi-liquid
  • Alarm/reject: Auto-rejection valve
  • Machine weight: 132lb
  • Operating environment: 32-104°F
  • Product memory: Up to 100 unique programs
  • IP level: 66 (washdown)
  • Parameter adjustment: Auto or manual programming
  • Power: 110V
  • Certifications: FDA CFR 21.1020.4 compliant
