Description
Features :

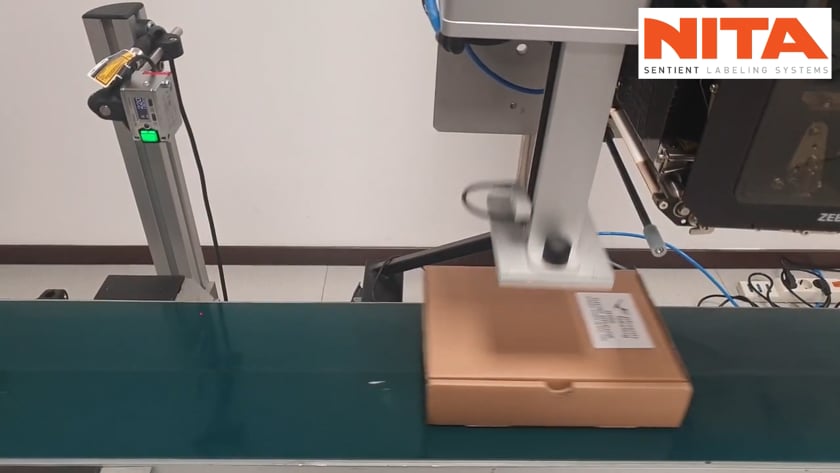

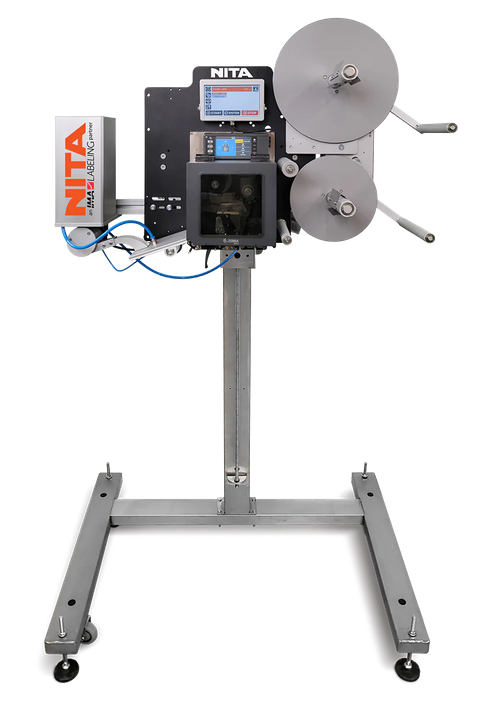

The Fleximate Print and Apply Label Application System is a flexible industrial labelling solution designed to meet a wide range of carton labelling and print-and-apply requirements. Featuring a user-friendly Human-Machine Interface (HMI), modular components, and interchangeable applicator configurations, the system can be adapted to different labelling applications and production needs.
User-Friendly HMI and System Control
- Intuitive HMI: Easily manage system functions, settings, and labelling parameters through a user-friendly touchscreen interface.
- User-Level Access Control: Operator, supervisor, and service access levels provide different permissions for system features and settings.
- Advanced Parameter Programming: Configure parameters for the applicator and integrated systems to suit specific application requirements.
- Customizable Display: Adjust language, date and time, display theme, screen preferences, and home-screen widgets.
Diagnostics and Remote Technical Support
- Built-In Diagnostics: Identify system errors and hardware failures to help simplify troubleshooting.
- Error History: View the most recent 378 errors to assist with diagnosing recurring issues.
- Configuration Backup: Save system settings and parameters for convenient reprogramming.
- QR Code Configuration Sharing: Export configuration information as a QR code that can be photographed and sent to Nita for diagnostic assistance.
- Configuration Transfer: Transfer configuration data through Ethernet or USB using a computer.
- Remote Troubleshooting Support: Remote HMI access allows technical support personnel to help diagnose issues and reduce equipment downtime.
Production Monitoring and Maintenance
- Batch and Lifetime Counters: Monitor production using a resettable batch counter and a lifetime counter that displays minutes of operation.
- Service Alerts: Set maintenance reminders based on total operating cycles or the number of days.
- Flexible Labelling Configurations: Choose from six available applicator types to accommodate different carton labeling applications.
Specifications:
Power/Motor/Controller:
- Electrical requirements 120 VAC ±10%, 50/60 Hz, 5 A
- Dedicated electrical circuit 115 VAC, 15 A
- Ambient operating temperature 0°C to 40°C
Labeller and label roll:
- Compatible printer brands: Zebra or SATO
- Minimum label size: 1″ wide × 0.24″ feed
- Maximum label size: 5.27″ wide × 14″ feed
- Acceptable label stock thickness: 0.001″–0.010″
- Standard maximum label roll diameter: 14″ outside diameter
- Label roll core diameter: 3″
- Label format: Die-cut labels
- Minimum inter-label spacing: 1/8″
- Minimum backing paper width: 1-1/8″
Available Options:
Six Applicator Configurations
The Fleximate Print and Apply Label Application System is available with six applicator types, allowing the equipment to be configured for different carton labelling applications.

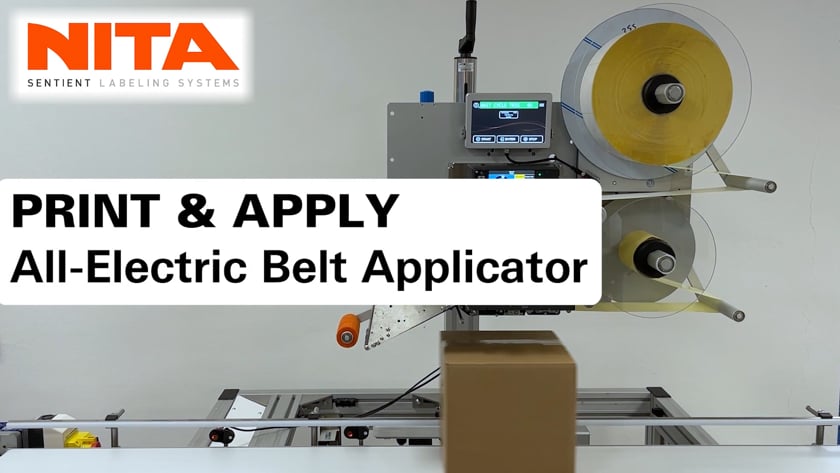

eBelt Applicator
Designed for a belt-based label application configuration. The appropriate application method depends on the carton and labelling requirements.
WindGrip Applicator
An available applicator configuration for applications requiring a different label application arrangement.
eLinear Applicator
An alternative applicator configuration for adapting the labelling system to the intended application.
eBlade Applicator
An available applicator configuration for specific label placement requirements.

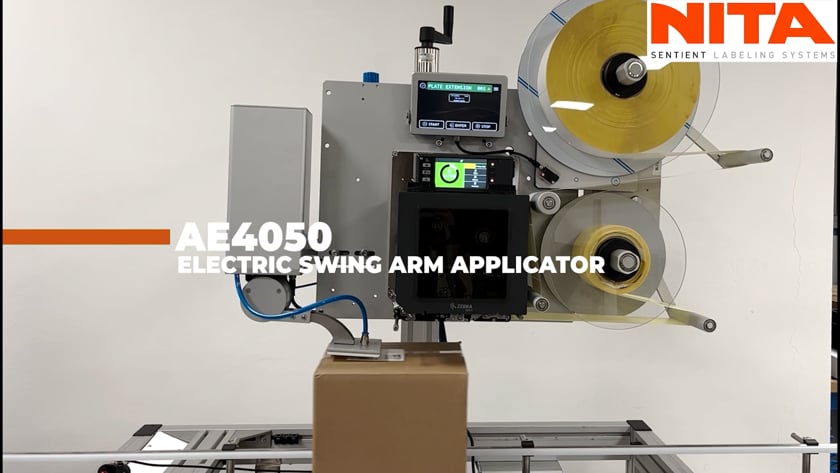

eSwing Applicator
A swing-style applicator configuration for applications suited to this arrangement.
eCorner Applicator
An applicator configuration intended for corner-labelling applications.
Printer Options
The Fleximate supports thermal transfer printers from two manufacturers:
- Zebra
- SATO
Printer selection can be based on your printing requirements and preferred equipment configuration.
Customizable HMI Settings
The system also offers configurable software preferences, including:
- Display language and theme.
- Date and time settings.
- Home-screen widgets.
- User access levels.
- Applicator and integrated-system parameters.
- Service alert intervals.
Contact us to discuss the appropriate Fleximate configuration, compatible label materials, and printer options for your carton labeling application.
