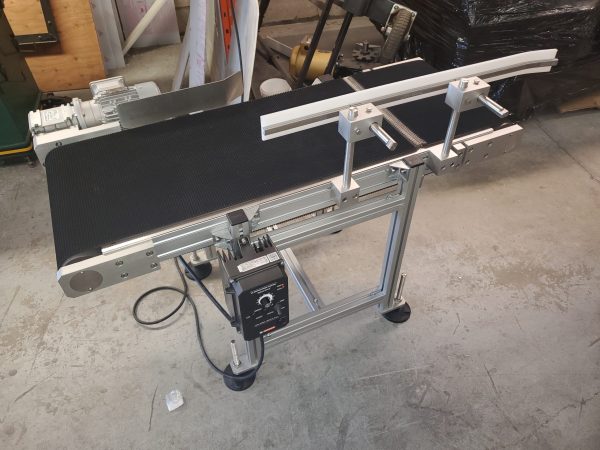

Precision Slider Bed – Model MP-3000-S

Main Uses

Precision slider bed conveyors are used for precise transport and positioning of consumer products and packaged foodstuffs. Applications include packaging machine integration, food handling and accumulation.



For lighter duty applications involving primary packaging, we offer our LP-1500-S conveyor constructed from 40 mm x 40 mm aluminum extrusion.

Quick info

Category:

Description

Features:

  • Width (overall): 1.0″ greater than specified belt width
  • Width (belt): 6″ to 36″
  • Length (overall): 3′-0″ to 30′-0″
  • Belt: various – ranging from white PVC to urethane with clipper lacing or cold spliced endless seam
  • Drive: end drive
  • Drive pulley: twin 3-1/2″ diameter x 0.120″ wall fixed pulleys with 1-1/4″ diameter shaft hubs – with press-fit centre spacer – all mounted to keyed 1-1/4″ diameter stainless or carbon (application dependent) steel shafting
  • Tail pulley: twin 3-1/2″ diameter x 0.120″ wall fixed pulleys with 1-1/4″ diameter shaft hubs – with press-fit centre spacer – all mounted to keyed 1-1/4″ diameter stainless or carbon (application dependent) steel shafting
  • Idler rollers: on nominal 36″ centers – 13/16″ diameter x 0.120″ wall PVC rollers with 1/4″ diameter round axles
  • Take-up: 2″of belt take-up is provided by screw take-up mounted on one of the idler rollers
  • Bearings: all bearings are 1-1/8″ diameter caged North American roller bearings with seals
  • Nord SK1S40 series sealed worm gear “c” face speed hollow output shaft reducer with torque arm – standard anodized aluminum finish with a Nord IEC series 10:1 inverter duty, totally enclosed, fan cooled, “c” face aluminum motor.
  • Conveying speed: constant and variable speeds available from 10 to 300 fpm
  • Can be supplied with a KB Electronics KBAC-24D AC frequency drive or controlled by a central panel

Specifications:

Load:

  • Load capacity: 10 pounds per lineal inch, 175 pounds total live load per driven section, assuming that conveyor is not inclined or accumulating

Structure:

  • Bed: constructed from 80 mm x 40 mm aluminum extrusion with formed, 11 gauge stainless steel top plates to provide a centre gap for underside “V” guide
  • Stands: supplied with welded tubular “H” supports with polyamide jackscrew feet that provide adjustability of ± 2″ with centres that do not exceed 120″

Electrical Requirements:

  • 120V 1 phase, 230 V 1 phase, 230/460V 3 phase and 575V 3 phase

Options:

  • Casters, transition plates and end stops
  • Electrical controls
  • Belt construction
  • Conveyor speed
  • Guard rails: various ranging from solid side plate to adjustable Value-Guide systems
