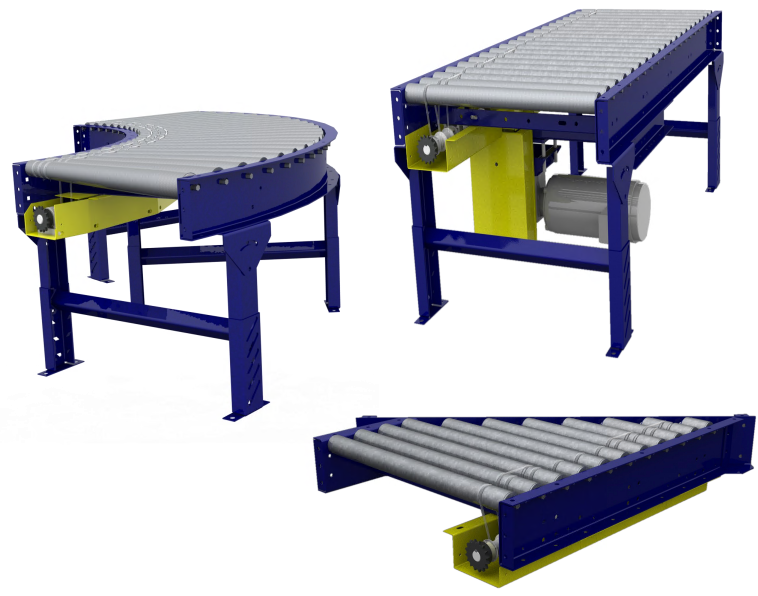

Line Shaft Conveyor – model LSDS-1.9

Main Uses

Line shaft conveyors are used for general case transport with some accumulating properties with limitations. These conveyors offer the greatest flexibility in transmitting drive through an assortment of elements ranging from curves, spurs and straight-running sections – cost savings result.

Other roller sizes are available ranging from 1-3/8″ up to 2-1/2″ diameter depending upon per roller load capacity requirements. In order to readily pass Ontario Pre-Start Review requirements, we recommend that roller centres be tightened up to minimum with 1/4″ or less spacing between rollers.

Quick info

Category:

Description

Features:

  • Width (Between Rail): ranges from 13″ to 39″ in 1″ increments
  • Width (overall): 3″ greater than BFR
  • Length: 120 ft per driven section with drive at the center
  • Rods and turnbuckles are used on every other bed section on lengths exceeding 30 ft – this insures proper alignment of bed rollers and correct product tracking
  • Rollers: 1.9″ x 16 gauge galvanized tube on 3″ centers (typical)
  • Axles: 7/16″ hex shaft, spring retained
  • Drive: center-mounted, underneath – motor will extend beyond frame on widths less than 24″ OAW
  • Drive shaft: 1″ diameter steel shaft extends full length of conveyor – Delrin chain coupling at all bed joints
  • Drive spools: 2″ diameter Delrin spool, fixed in position with “snap-on” lock collars
  • Drive guard: easily detachable from underside of drive shaft, mounted the entire length of conveyor
  • Drive o-ring: 3/16″ diameter polyurethane o-ring from drive spool to tread rollers – spares are pre-attached to the inside of the frame
  • Bearings: tread rollers have pre-lubricated ball bearings – drive shaft has sealed, pre- lubricated, self- aligning cast iron ball bearings with eccentric lock collar
  • Motor: powered with 1/2 Hp to 2 Hp, totally enclosed, fan cooled, “c” face
  • Speed reduction: sealed worm gear “c” face speed reducer – #50 roller chain to drive
  • Conveying speed: constant speeds available from 45 to 120 fpm – high speed enhancements available

Specifications:

Load:

Load capacity: 15 pounds per driven roller, up to 2,500 pounds total live load per driven section, product not to exceed 75 pounds

Structure:

  • Finish: powder coated with an available range of RAL colours
  • Frame: 5.5″ x 12 gauge galvanized, formed steel channel frame bolted together with butt couplings
  • Stands: supplied with adjustable “H” type supports on nominal 10 ft centers

Electrical Requirements:

  • 120V 1 phase, 230 V 1 phase, 230/460V 3 phase and 575V 3 phase

Options:

  • Electrical controls
  • Guide rails of various types
  • Conveyor speed
  • Constantly driven (no slip) spools
