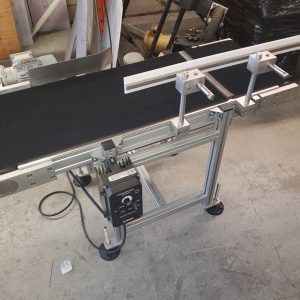

Features:

• Width (overall): belt width + 5″
• Width (belt): standard 12″ to 36″ in full 6″ increments
• Length (overall): standard ranges from 7′ to 102′
• Belt: black PVC-120 with clipper lacing
• Bed: roller bed with 1.9 in diameter x 16 gauge rollers with 7/16 in hex shafts spaced every 6 inches
• Tail Pulley: 4″ diameter with 1-3/16″ diameter shaft, 6″ diameter with 1-7/16″ diameter shaft, crowned
• Snub rollers: 2-1/2″ diameter with grease packed ball bearings (adjustable)
• Return rollers: 1.9″ diameter with grease packed ball bearings
• Take-up: provides belt take-up at tail pulleys to allow for future belt stretch
• Bearings: sealed, pre-lubricated, self aligning ball bearings on drive and tail pulleys
• Motor: powered with 1/2 Hp to 2 Hp, totally enclosed, fan cooled, “c” face
• Speed reduction: sealed worm gear “c” face speed reducer – # 50 roller chain to drive pulley
• Conveying speed: constant and variable speeds available from 10 to 200 fpm

Specifications:

Load:

Load capacity: 240 pounds per lineal foot, 11,000 pounds total live load per driven section

Structure:

• Finish: powder coated with an available range of RAL colours
• Frame: 5-1/2″ deep x 10 gauge painted steel channel frames – standard 5 ft and 10 ft long welded sections, with welded-in end couplers
• Stands: supplied with 3″ structural channel legs with 4″ adjustment – available up to 89″ top of belt – one support at every bed joint and at ends of conveyor

Electrical Requirements:

• 120V 1 phase, 230 V 1 phase, 230/460V 3 phase and 575V 3 phase

Options:

• Electrical controls
• Guard rails: various ranging from solid side formed angles to adjustable formed channel
• Belt construction
• Conveyor speed
