TAB-CHAIN Belt Conveyor
Main Uses

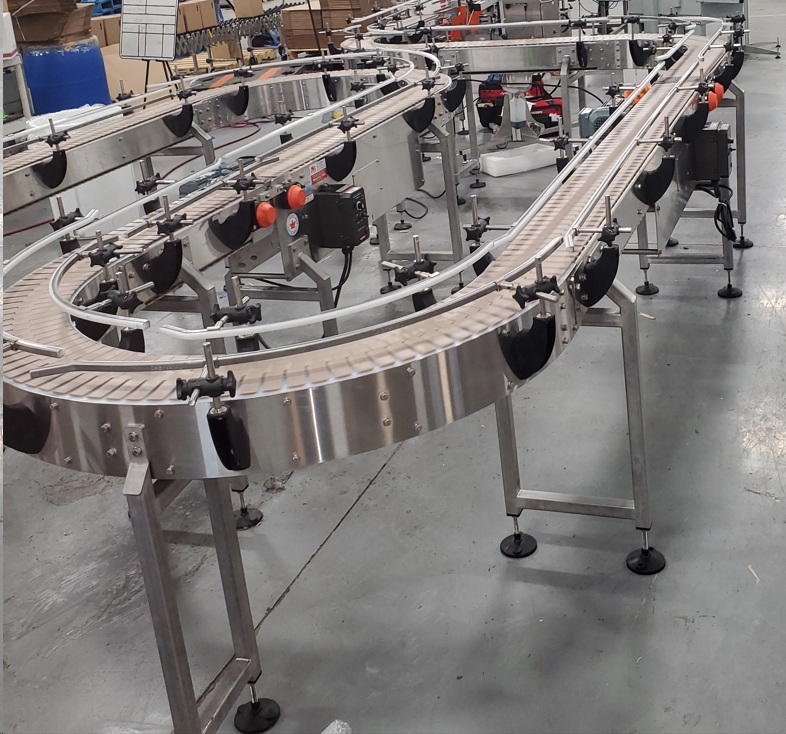

For conveyor layouts requiring tight turns
Radius running plastic tab chain
Capable to run on corner discs
Widths: available 2″ through 48″ Conveyors wider than 12″ are made up of multiple chains arranged side by side and driven by a common drive shaft with a sprocket for each strand.

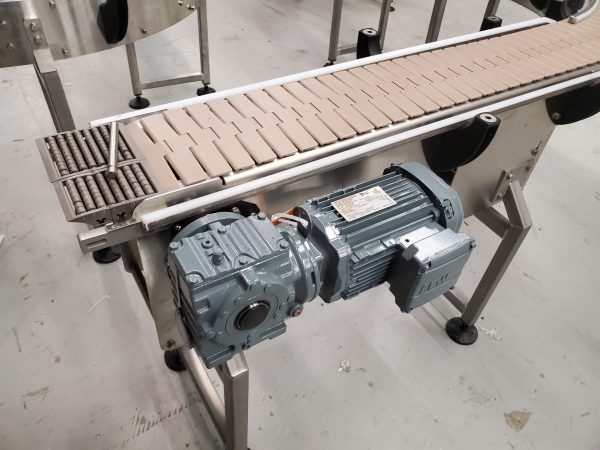

Straight running horizontal tab chain
End driven
Sanitary design is available
Snub idler at drive ensure consistent drive sprocket engagement
Maximum conveying speed: typically provided at between 40 fpm and 125 fpm
Can be supplied with a KB Electronics KBAC-24D AC frequency drive or controlled by a central panel
428 pounds/ft total live load per driven section is dependent upon inclination, accumulation and belt width
Structure:
Constructed from 11 gauge, 2b finish, 304 stainless steel formed plates with bolt-on cross members
Stands: 1-1/2″ x 1-1/2″ X .120″ wall stainless steel tubular legs that are welded and bolted to frame at centres that do not exceed 120″
Feet: can be supplied with either NGI stainless steel hygienic 5/8″ NC leveling pads that provide adjustability of ± 2″ for hygienic applications or Marbett tubular inserts and threaded feet for standard use
Electrical Requirements:
120V 1 phase, 230 V 1 phase, 230/460V 3 phase and 575V 3 phase
Options:
Casters, transition plates and end stops
Electrical controls
Belt construction
Marbett micro-roller transfer with stainless steel support plate mounted on height adjustable assembly at the infeed and discharge
Guard rails: various ranging from solid side plate to adjustable Value-Guide systems
