Features:

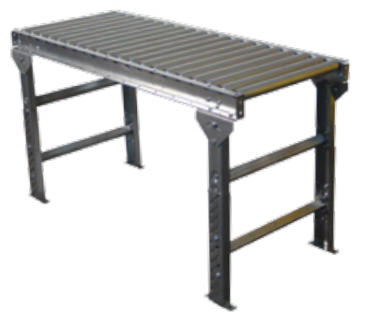

• Frame: 2-1/2″ deep by 1″ flange x 12 gauge galvanized steel or 1/8″ aluminum channel with bolt-in cross members, spaced every 2 ft – an economy lite line is available with 14 gauge channel frames – 4″ deep channel frames for rollers set low
• Widths (overall): 12″, 15″, 18″, 21″, 24″, and 30″
• Lengths: 5 ft and 10 ft straight sections – special lengths available
• End couplers: gravity hooks on one end – rod on opposite end – all couplings are bolted to frame – bolt-in end couplers also available
• Rollers: 1- 3/8″ diameter x 18 gauge galvanized or heat-treated aluminum tubing
• Bearings: oiled ball bearings both ends
• Axles: 1/4″ diameter spring retained axle spaced on 1-1/2″, 3″, 4″, 4-1/2″, 6″, 8″, 9″ or 12″ centers

Specifications:

Load:

• Load capacity: maximum load per linear foot with legs on 10 ft centers – 310 pounds

Structure:

• Finish: galvanized
• Frame: 2-1/2″ deep x 1″ x 12 gauge galvanized steel channel frames – standard 5 ft and 10 ft long bolt-together sections with bolt-on end couplers

Options:

Guide rails of various types
