Features:

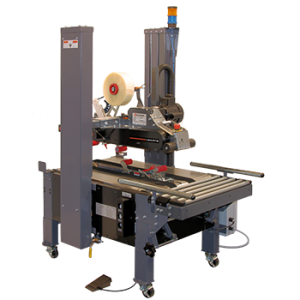

• 24 hours/365 days per year reliability are what you can expect from this heavy duty fully automatic top and bottom case sealer for applications involving large runs of boxes.
• Box adjustments can be made in less than one minute
• Plug-in operation, minimal operator training makes this compact, 77″ length sealer, an assembly line work horse.
• Also available in side belt where application warrants.
• Minimum outside dimensions: 24″ long x 20″ wide x 20″ high
• Production rate capabilities are up to 30 cases per minute (depends on box size & operator dexterity)
• Instantly removable and interchangeable top and bottom 2″ taping cartridges
• Top squeezer assembly to ensure the top major flaps are butted against each other while the case is being taped
• Automatic in-feed case indexing gate
• Self centering, self tensioning belts to reduce wear
• Can be ordered for 2″ or 3″ wide tape
• Four sliding access doors are all interlocked with safety door switches
• Leeson reducer and TEFC motor

Specifications:

• Power Requirements : 120 volts, single phase, 60 cycle, 8 amps
• Operating Speed : Continuous belt drive; Standard : 80 feet/minute (24.4 m/min)
• Air requirements : 4 SCFM at 70 PSI

Case Capacity:

• Length: 8″ (203 mm) – 24″ (610 mm),
• Width: 4-1/2″ (114 mm) – 20″ (508 mm)
• Height: 4-1/2″ (114 mm) – 20″ (508 mm)

Machine Dimensions:

• Length: 77″ (1956 mm)
• Width: 37-1/4″ (946 mm)
• Height: 70″ (1778 mm)

Reliable Performance – Warranty:

• 1 Year all components*
• 2 Years Gear Reducer
• 3 Years Cartridge*

*Moving and wear parts are not included. Other restrictions may apply. Consult your authorized distributor for details.
