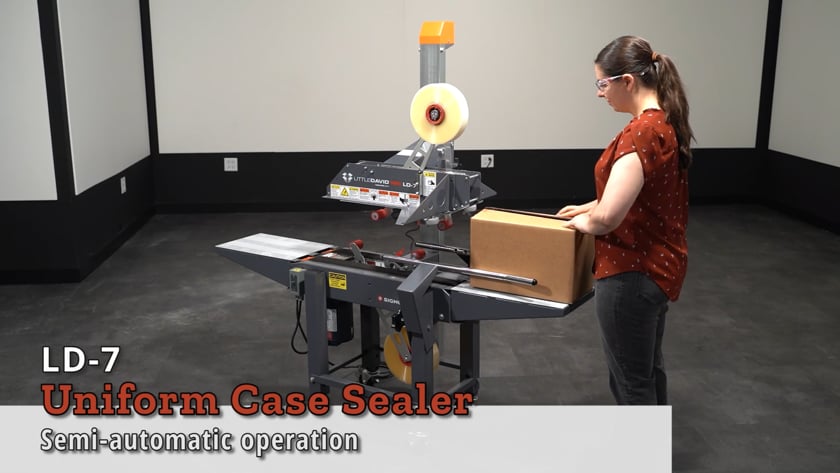

LD-7

Main Uses

  • Top and bottom case taping
  • Small footprint
  • For sealing large runs of uniform cases

Quick info

Description

Features:

  • Single mast design
  • Compact design allows for portability
  • Self centering, self tensioning belts to reduce wear
  • Self-centering side rails – eliminates operator set-up error
  • Easy load tip-up feature for top cartridge to allow for easy re-threading
  • New heavy duty side threading Caselocker CAC60 cartridges
  • Expandible mandrel accommodates tape cores that are outside of specification.
  • Steel roller bearings in upper head
  • Leeson reducer and TEFC motor
  • Production rate capabilities of up to 10 – 20 cases per minute (Operator / process dependant)
  • Knife guard system of the Caselocker ST® tape cartridge allows the blade to be exposed only when the rollers are depressed

Specifications:

  • Power Requirements: 120 volts, single phase, 60 cycle, 5.8 amps
  • Operating Speed: Continuous belt drive; 80 feet/minute (24.4 m/min)
  • Weight: 196.5 lbs (89 kg) uncrated

Case Capacity (with 2″ wide CaseLocker ST(TM) cartridge):

  • Length: 4-1/2″ (114 mm) – infinite
  • Width: 4-1/2″ (114 mm) – 20″ (508 mm)
  • Height: 4-1/2″ (114 mm) – 24″ (610 mm)

Machine Dimensions:

  • Length: 50-7/16″ (1271 mm)
  • Width: 32-3/32″ (813 mm)
  • Height: 59-13/16″ (1499 mm)
