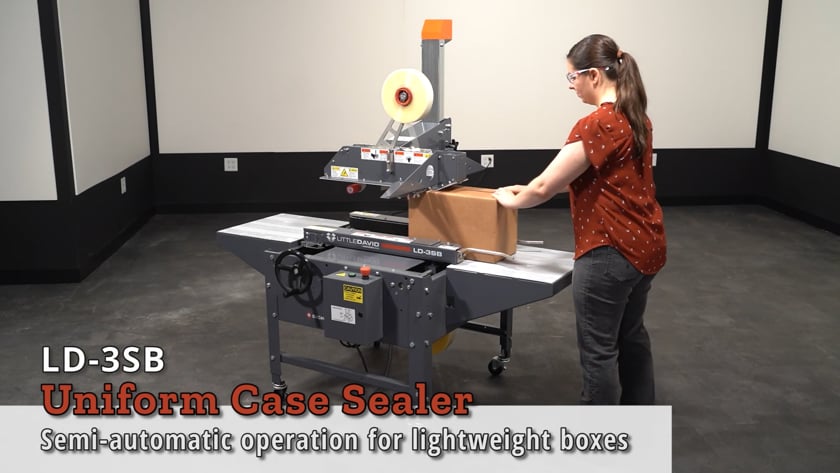

LD-3SB

Main Uses

  • Top and bottom case taping
  • Recommended for dimensionally unstable boxes and boxes as narrow as 3-1/4″
  • For sealing large runs of uniform cases

Quick info

Description

Features:

  • Can be used for setting empty boxes with bottom tape only
  • Self-centering belts
  • Single mast design allows clear access
  • Uses pressure-sensitive tape
  • Minimum outside dimensions: 3″ long x 4″ wide x 4-1/2″ high
  • Maximum outside dimensions: Infinite” long x 20″ wide x 24″ high
  • Easy load tip-up feature for top cartridge to allow for easy re-threading
  • New heavy duty side threading caselocker cartridges
  • Production rate capabilities of up to 10 – 20 cases per minute (Operator / process dependant)
  • Bison gear motors
  • Instantly removable and interchangeable top and bottom 2″ taping cartridges

Specifications:

  • Power Requirements : 120 volts, single phase, 60 cycle, 8.0 amps
  • Operating Speed : Continuous belt drive; 76 feet/minute (23.16 m/min)

Case Capacity:

  • Length: 4-1/2″ (114 mm) – infinite,
  • Width: 4 (102 mm) – 20″ (508 mm)
  • Height: 4-1/2″ (114 mm) – 24″ (610 mm)

Machine Dimensions:

  • Length: 48-5/8″ (1260 mm)
  • Width: 43-3/4″ (1111 mm)
  • Height: 62-13/16″ (1595 mm)

Reliable Performance – Warranty:

  • 1 Year all components*
  • 2 Years Gear Reducer
  • 3 Years Cartridge*

*Moving and wear parts are not included. Other restrictions may apply. Consult your authorizeddistributer for details.
